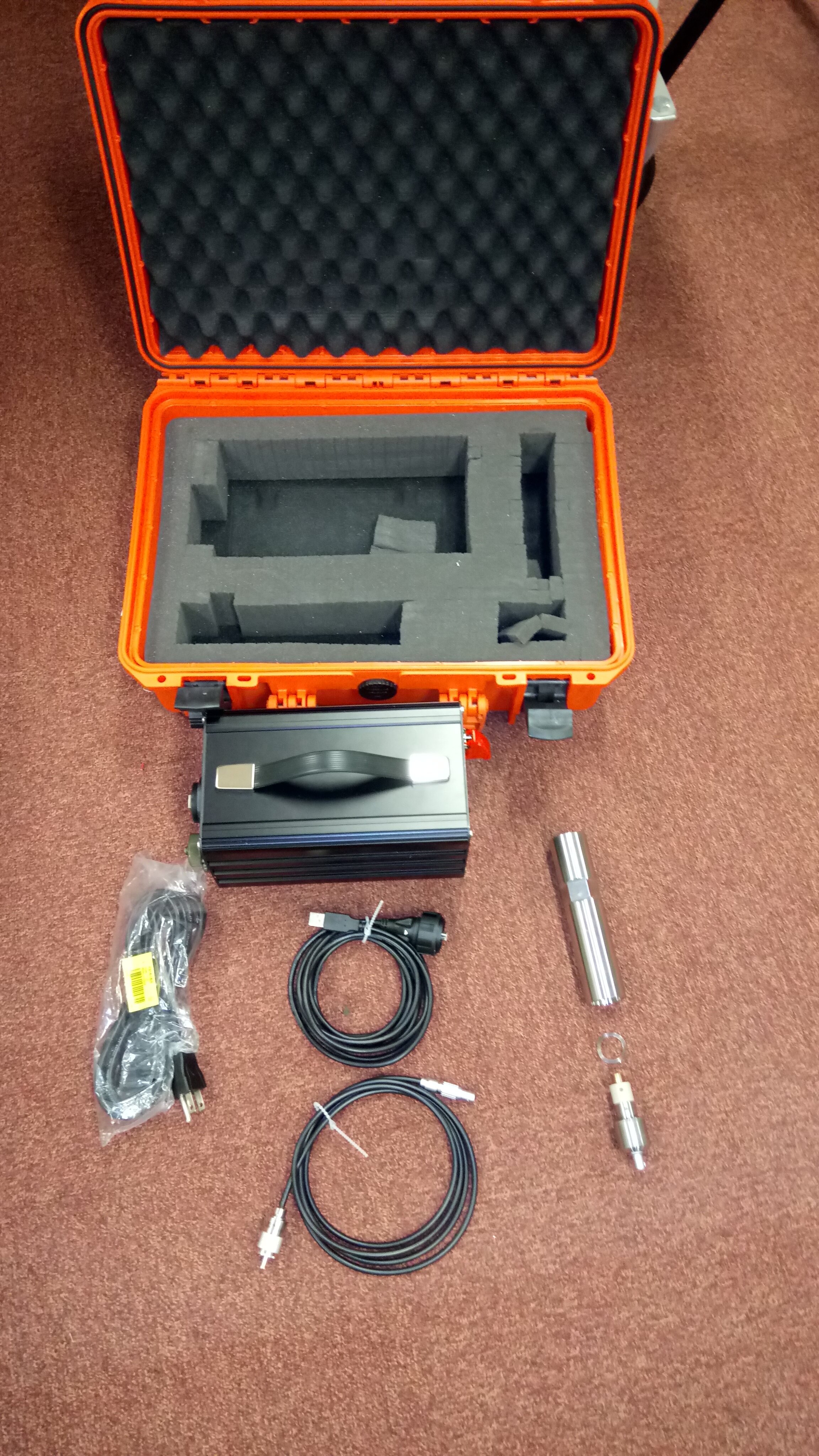

Surface Read-Out kit
Surface Read-Out kit
Simple to setup and use.
A cost effective way to add SRO operation to your PL kit

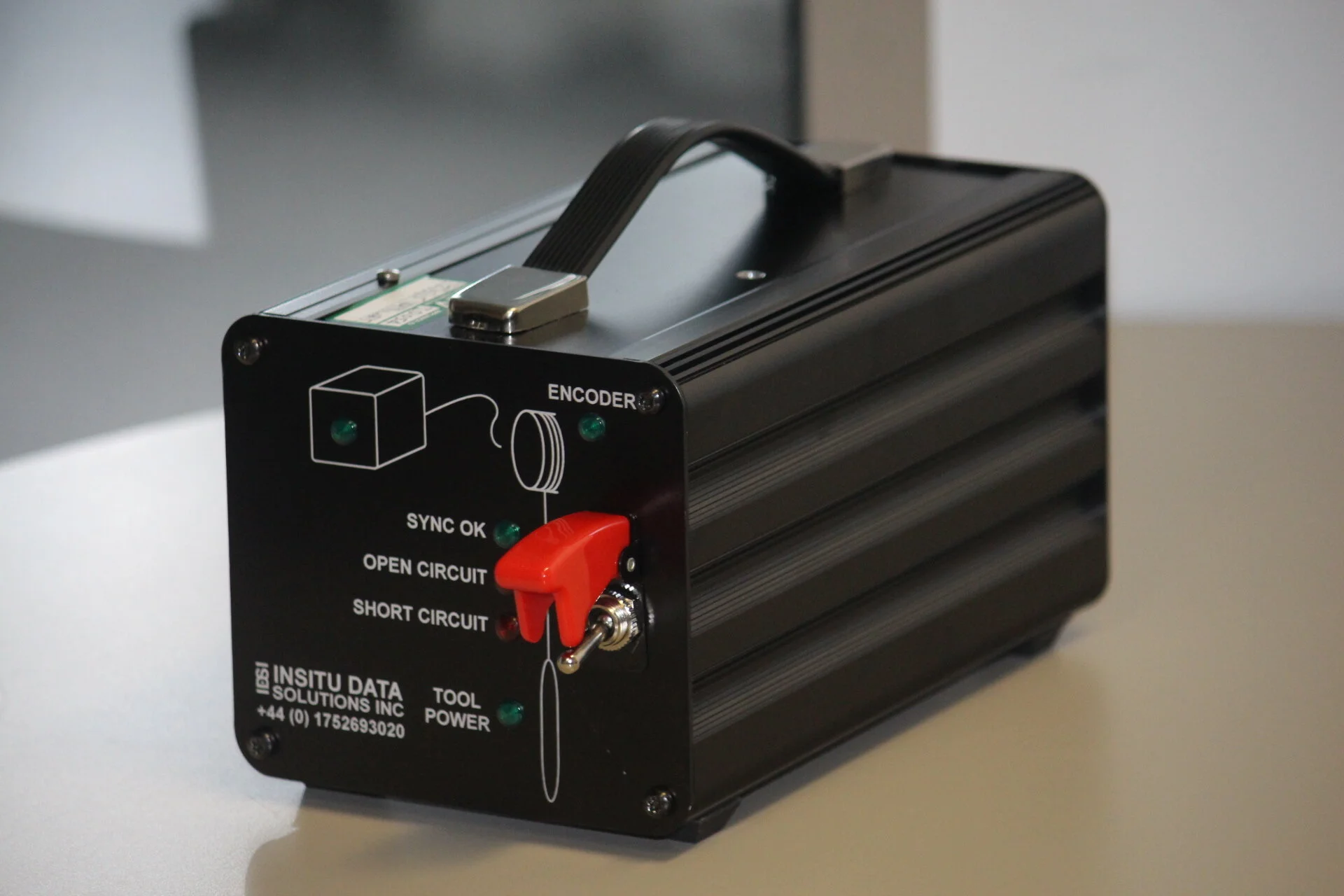

Cable Interface Unit
• Simple setup and operation.
• Automatically adapts to whatever impedance the wireline is.
• No user adjustments required.
• Accepts a standard depth encoder feed.
• Accepts a standard wireline feed.
• Connection to the logging laptop is by USB.

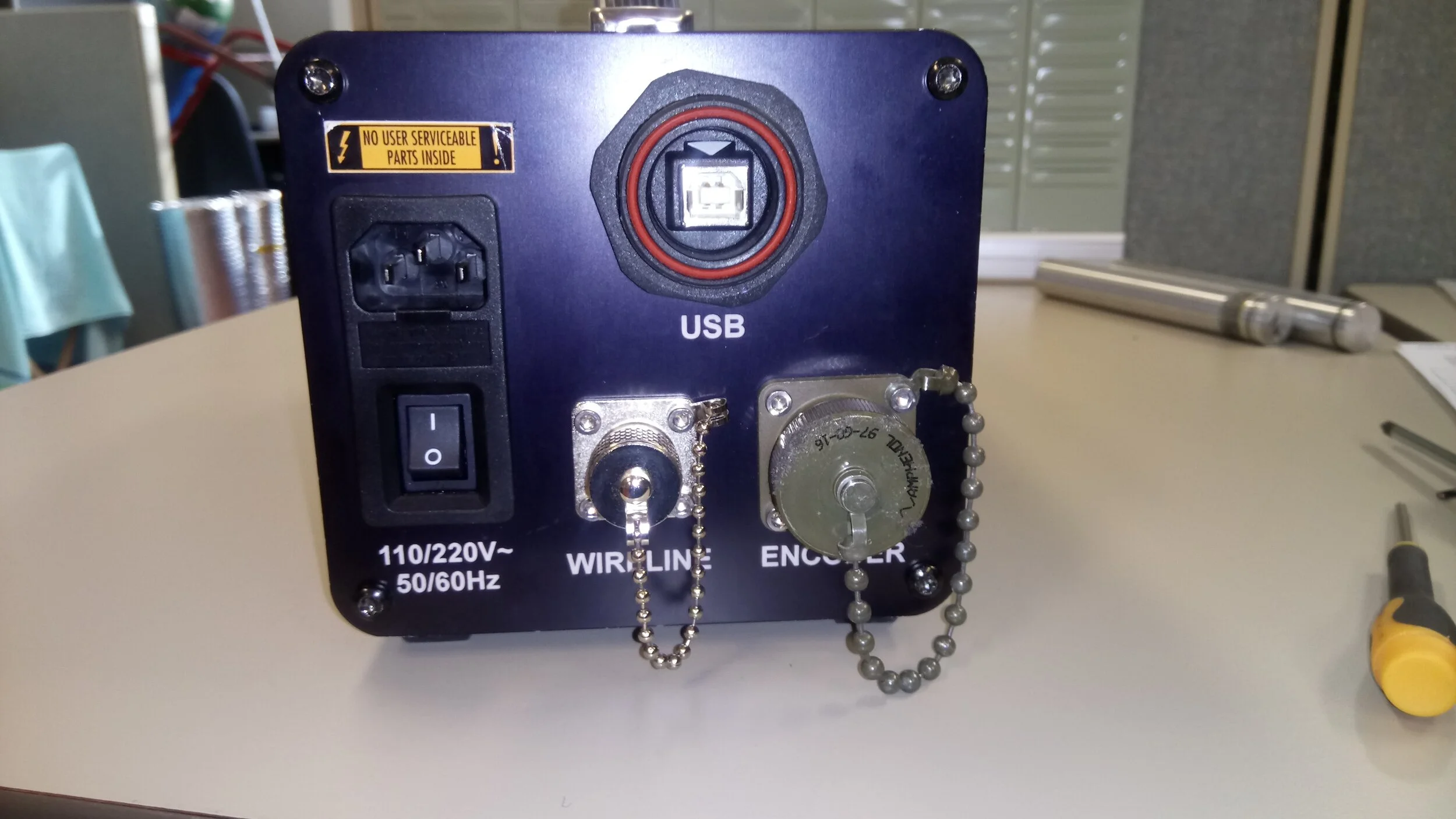

CIU connections
• Simple and secure connections for shaft encoder, wireline & USB.
• Standard mains AC power

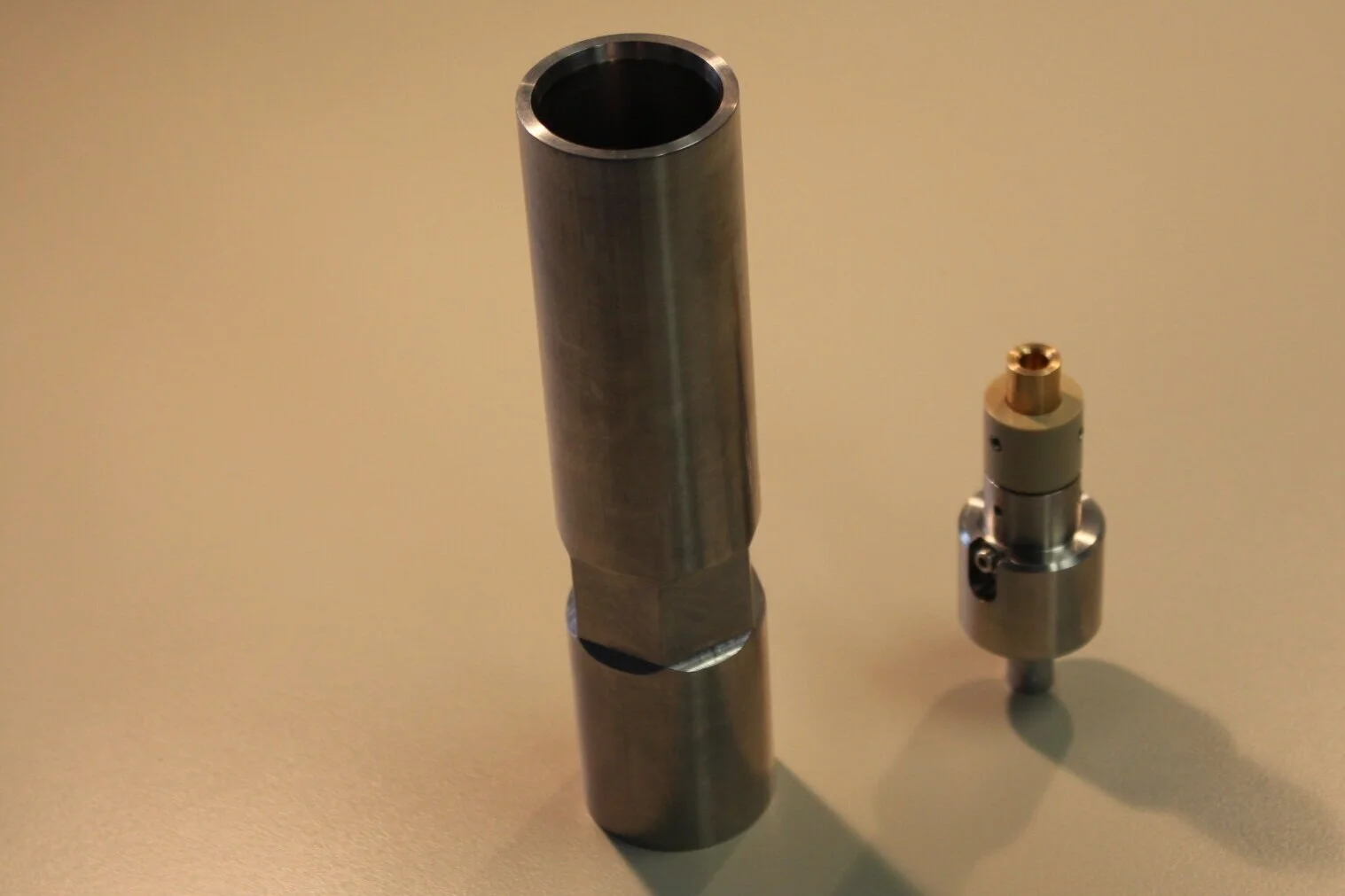

SRO crossover for PL Tool
Plug the crossover into the PL tool for connection to a wireline, and the tool recognises the job is SRO instead of MRO, and starts transmitting data up the wireline.
The crossover accepts an industry standard GO connector.

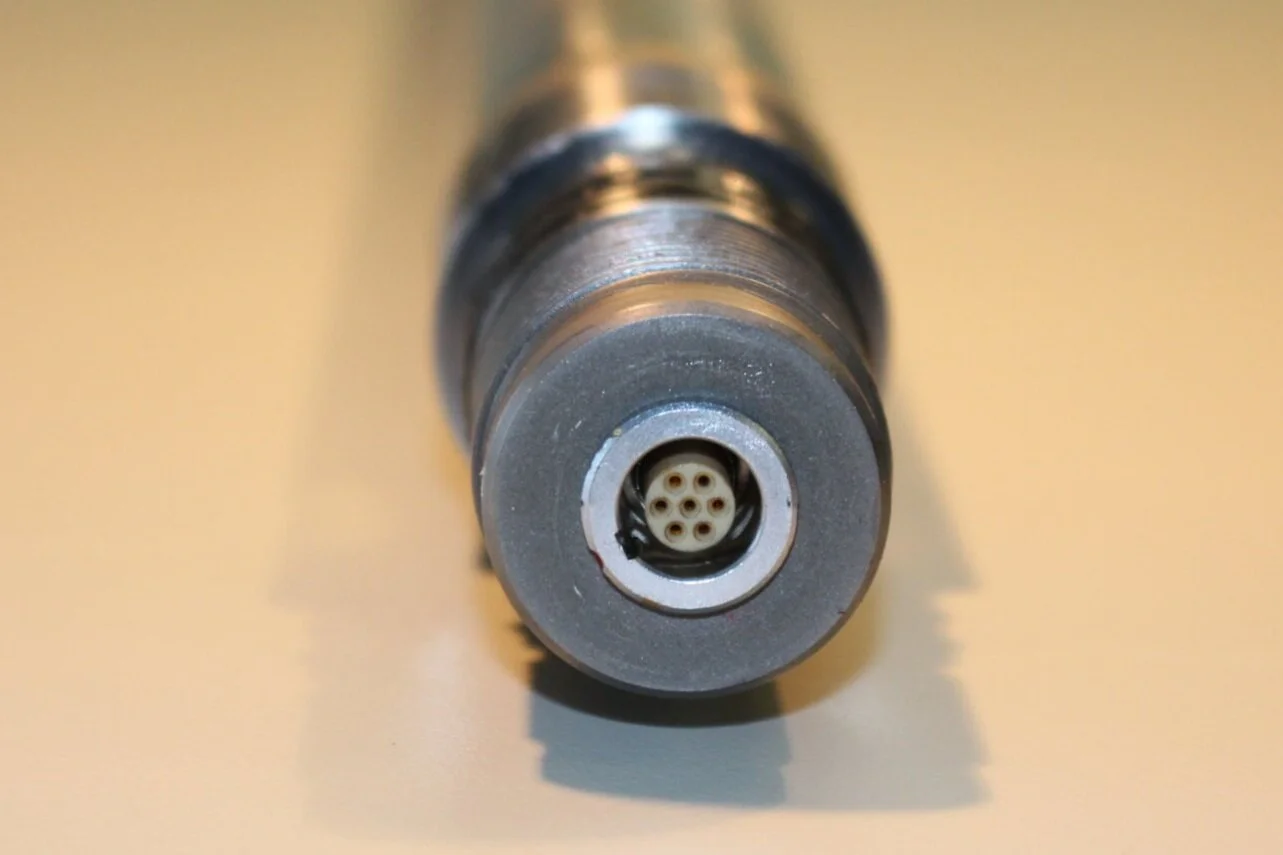

The PL tool -top connector.
The PL tool has a standard 7-pin ODU connector which accepts the SRO crossover, for connection to the wireline.
The PL tool transmits 10 data samples per second.
