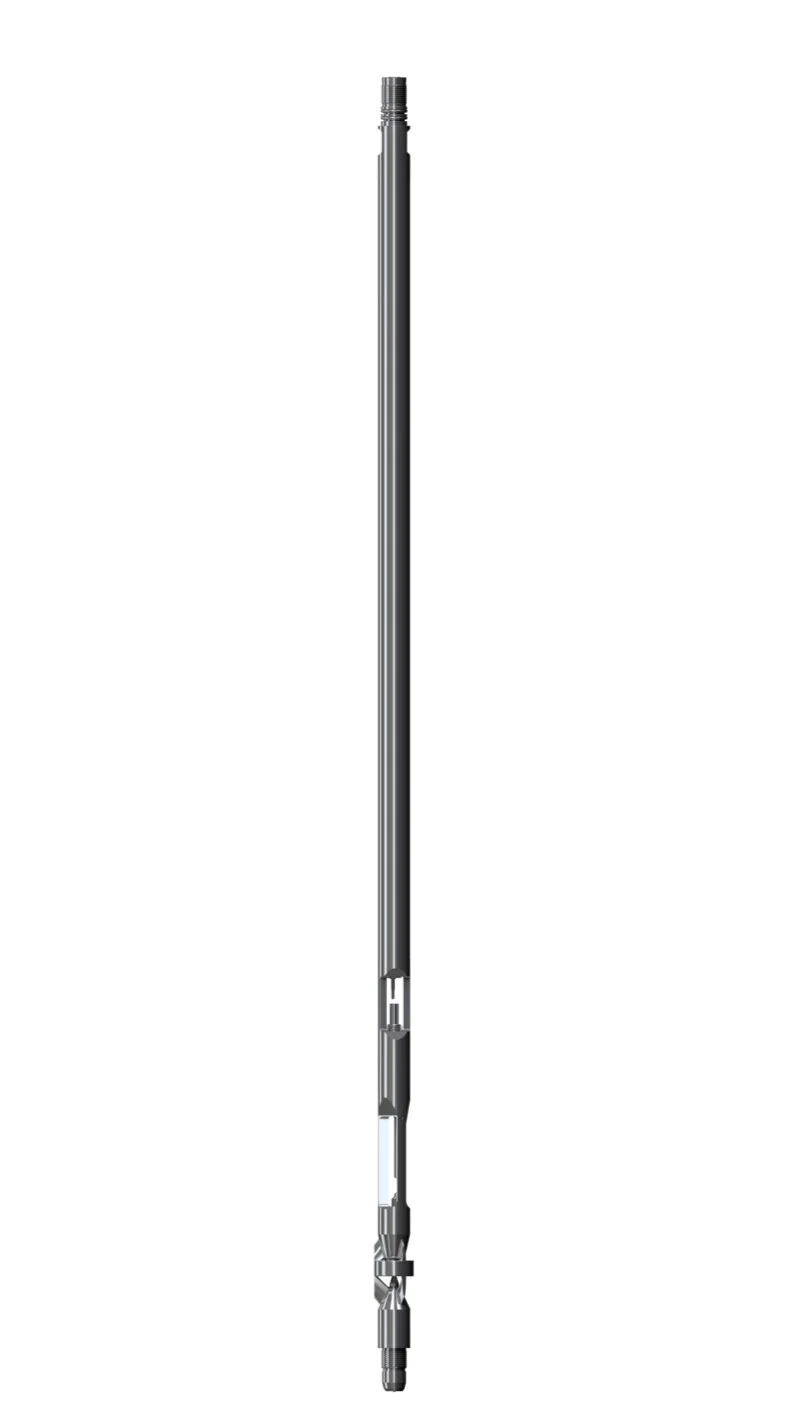

PLT 428 Production Logging Tool
Production Logging Tools

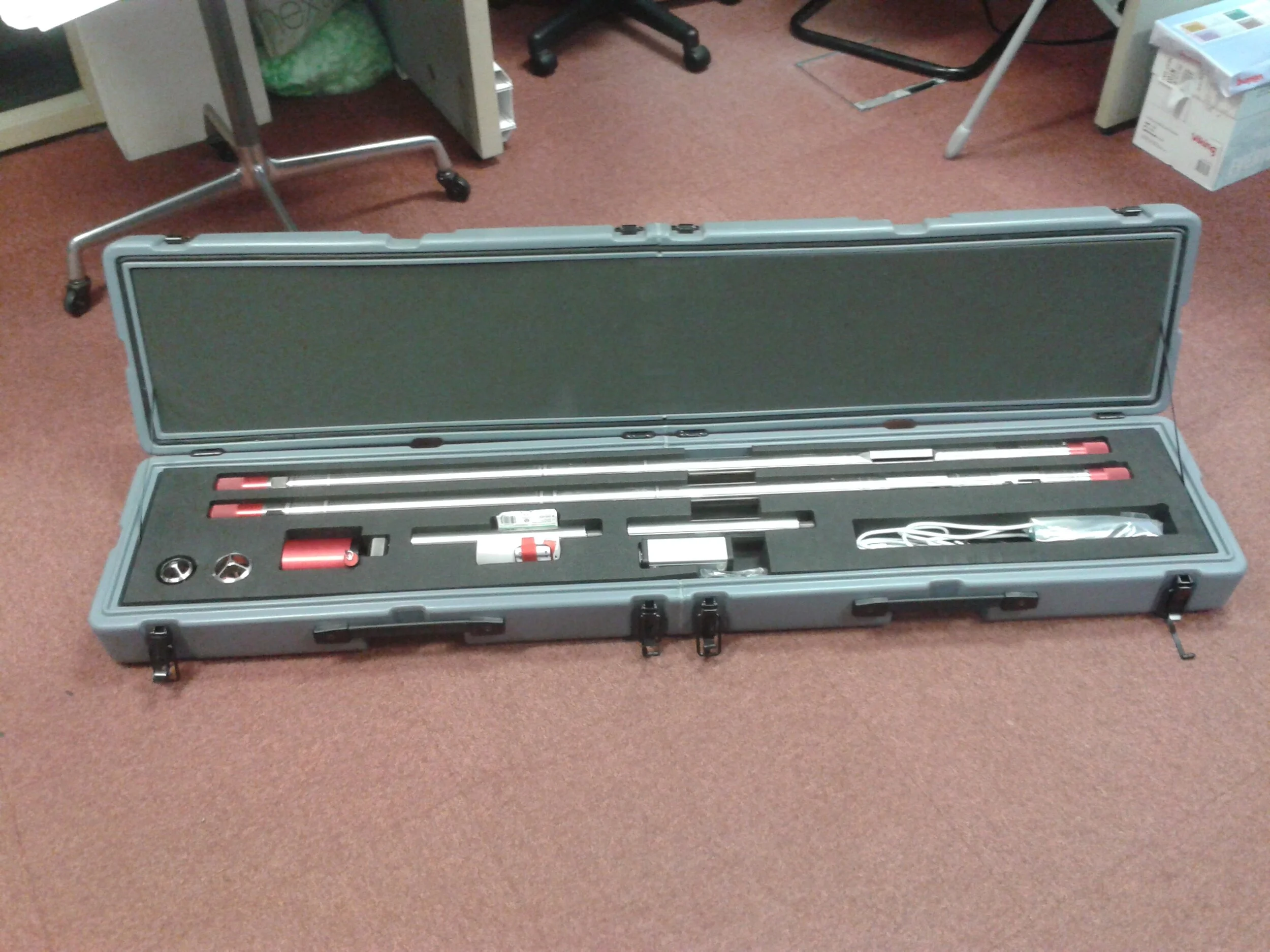

Everything you need to go production logging in one box
Compact, robust & cost effective
Very simple to setup and use - just like a pressure gauge
Packed with sensors - suitable for all sorts of downhole work
PLT 428 SPECIFICATIONS:
• OUTSIDE DIAMETER: 1 11/16”, 42.8mm
• LENGTH: 55”, 1.4m
• TEMP RATING 350F, 175C
• AQUISITION: SRO/ MRO
• MEMORY: Flash Mem64 MB (58hrs logging)
• VOLTAGE: 7.6 V
• CURRENT: 110 mA
• BATTERY PACK: 2xLi D cells (56hrs logging)
• WEIGHT: 6kg
• MATERIAL: INCONEL 718
• PRESSURE RATING: 15,000 psi
PLT 428 Sensors
• Collar Locator 1 - traditional coil based
• Collar Locator 2 - magnetic flux based
• Gamma ray detector
• Deviation
• Pressure sensor
• Slow response temperature sensor
• Fast response temperature sensor
• Density sensor
• Viscosity sensor
• Capacitance (dielectric/water hold-up) sensor
• Fluid resistivity sensor
• In Line Flowmeter
• Range of attachable Continuous or Full-bore flowmeters
Derived sensors include;
• Differential temperature
• Computed density
• The tool also includes memory and telemetry
• 10 data samples/second
Everything you need to go logging in one box ! Compact, robust & cost effective.
